Architecture

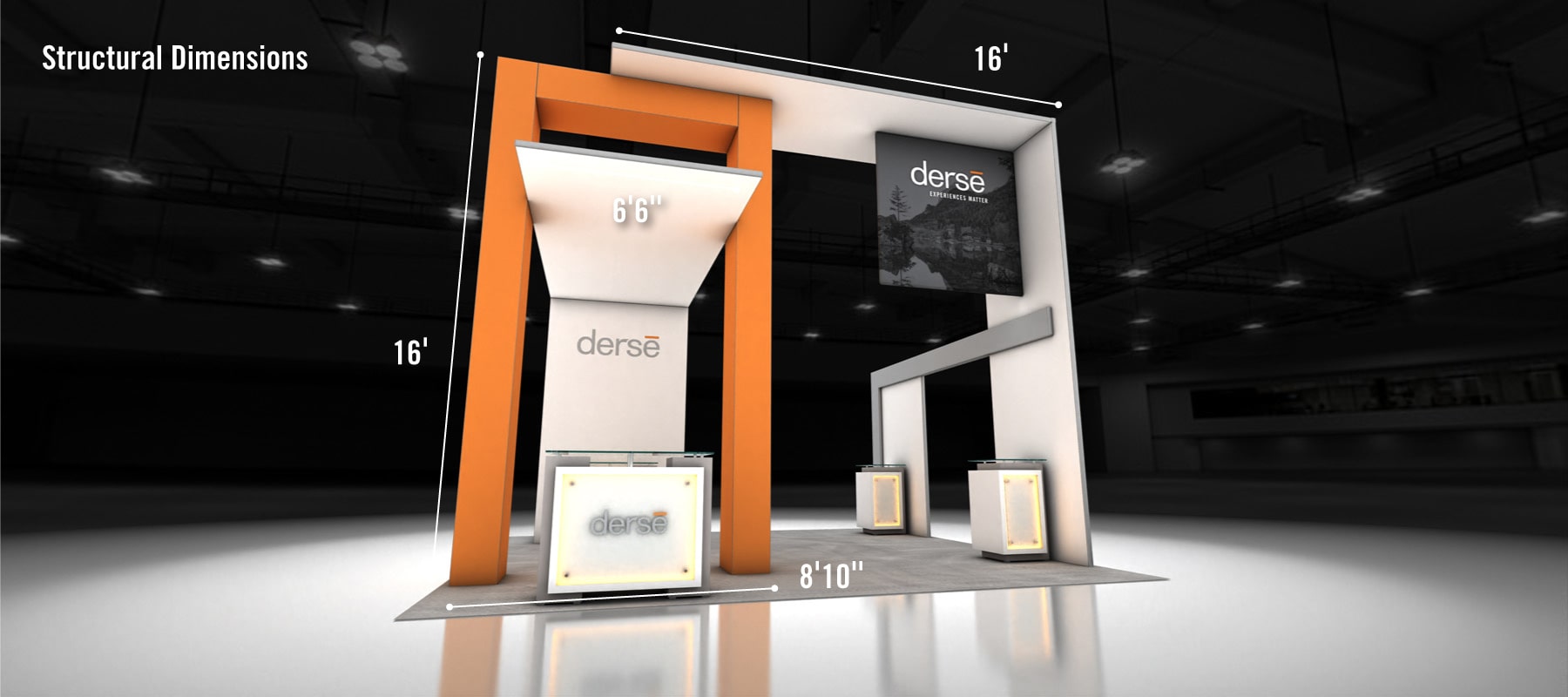

Structural Dimensions

• Refer to renderings above for kit dimensions

Materials

• Wall structure, canopies, and columns are crafted from aluminum extrusion panels and covered with digitally printed fabric SEG graphics
• Hanging sign composed of 2"-diameter aluminum frame with digitally printed pillowcase graphic

Storage

• Storage closet is 3'-3"-deep x 6'-6"-wide x 8'-high with full height locking access door
• Closet interior has white ACM infill panels
• Shelving unit optional

Flooring

• 20' x 20' standard 32 oz. carpet in light or dark gray
• ½" thick pad and Visqueen included

Accessories

• (2) Premium Rectilinear 2' x 2' x 40"-high counters with LED accent lighting, acrylic tops, lockable storage, and adjustable shelving
• (2) Premium Rectilinear 2' x 4' x 40"-high counters with LED accent lighting, acrylic tops, lockable storage, and adjustable shelving

For additional specifications on the accessories included, refer to our accessories library.

Graphics

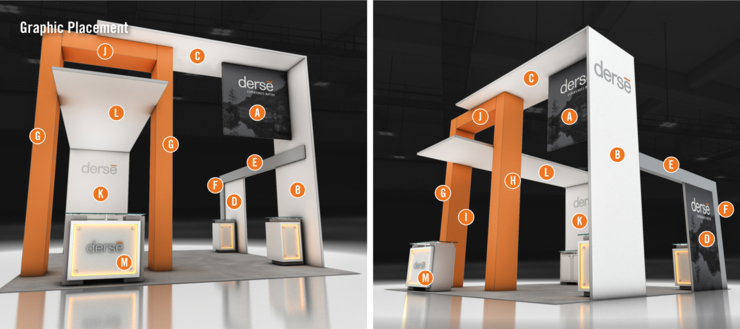

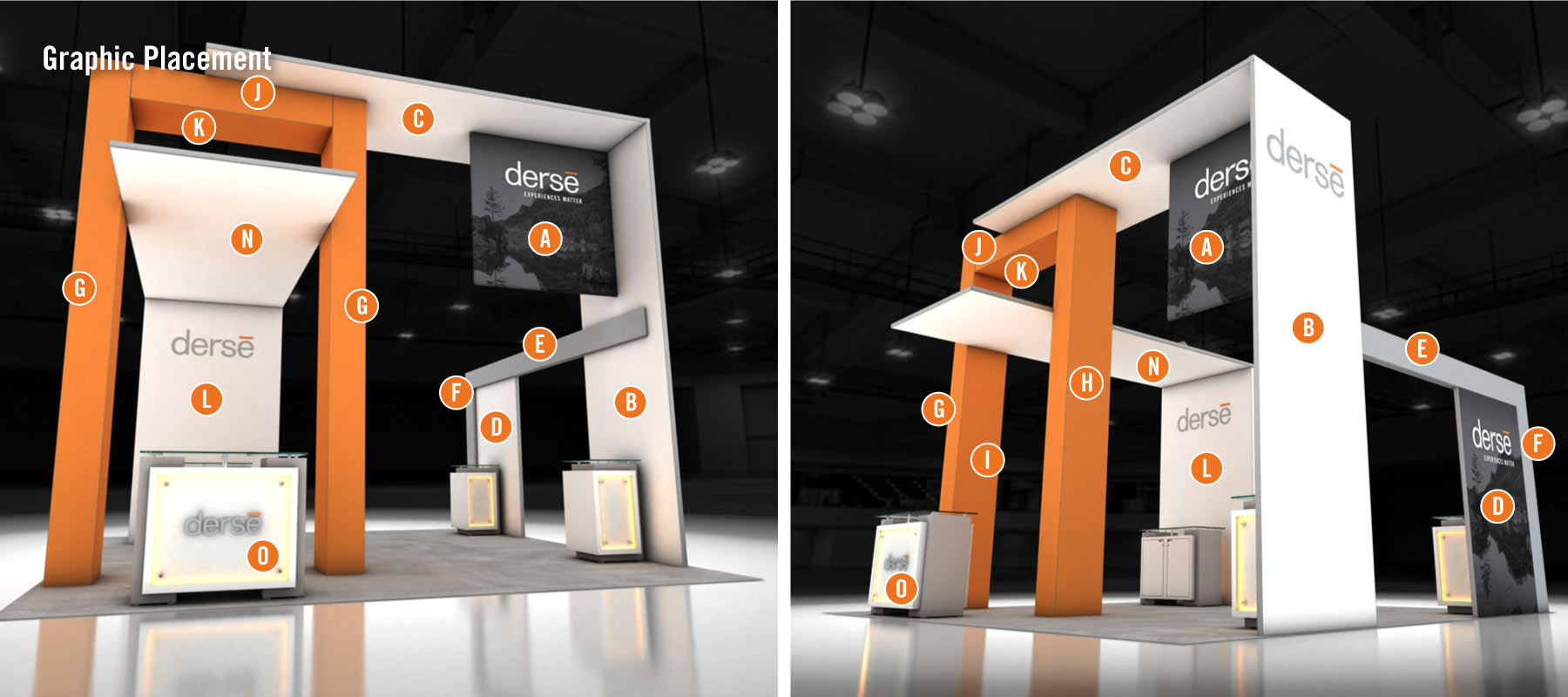

Refer to renderings above for graphic placement

• A (1) Digitally printed double-sided fabric pillowcase on sign 6'-wide x 6'-high
• B (2) Digitally printed fabric SEG panels on canopy upright support legs 6'-6"-wide x 16'-high
• C (1) Digitally printed fabric SEG panel on canopy underside 6'-6"-wide x 16'-long
• D (2) Digitally printed fabric SEG panels on side wall 5'-wide x 8'-high
• E (2) Digitally printed fabric SEG panels on connecting header 12'-wide x 10"-high​​​​​​​
• F (2) Digitally printed fabric SEG panels on upright support legs 14"-wide x 9'-high​​​​​​​
• G (4) Digitally printed fabric SEG panels on column legs (front and rear) 14"-wide x 16'-high​​​​​​​
• H (2) Digitally printed fabric SEG panels on column legs (outer sides) 24"-wide x 16'-high​​​​​​​
• I (2) Digitally printed fabric SEG panels on column legs (inner) 24"-wide x 14'-high​​​​​​​
• J (3) Digitally printed fabric SEG panels on column horizontal header 6'-6"-wide x 24"-high​​​​​​​
• K (2) Digitally printed fabric SEG panels on canopy upright support legs 6'-6"-wide x 12'-high​​​​​​​
• L (1) Digitally printed fabric SEG panel on canopy underside 5'-wide x 20'-long​​​​​​​
• M (1) 30"-wide x 18"-high vinyl graphic on front of Premium Rectilinear 2' x 4' counter

The life span of fabric graphics is directly affected by the variables encountered on show site and shelf life deterioration while in storage.

The cost to store graphics for one year is included. After year one, additional costs will be incurred.
